Linear Personal Emergency Reporting System (PERS-2400B) |
|
|
The Model PERS-2400B Personal Emergency Reporting System is a supervised wireless emergency reporting product designed for medical alert applications.
The table-top or wall-mount Console provides pushbutton emergency assistance to anyone who desires additional security and peace of mind.
The Console receives signals from up to 16 Linear wireless transmitters. Activating a transmitter causes the Console’s digital communicator to send the appropriate alarm report to the central monitoring station via the standard telephone network. In addition to the central station report, audible and visual indications occur and the alarm relay energizes during an emergency activation.
The emergency alarm can be triggered by the large EMERGENCY button on the face of the Console or with a wireless transmitter. The fire alarm can be triggered by wireless Model DXS-73 smoke alarms. The carbon monoxide alarm can be triggered by wireless Model DXS-80 carbon monoxide detectors. |
|

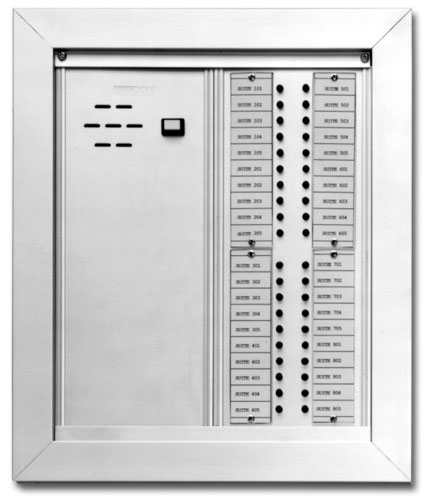

Mircom EC-300 Call Receiver Module |
The Central Monitoring Panel consists of an EC-300 Call Receiver module, EC-220A/240A annunciator module(s)
and a 300-nF frame housing.
The EC-300 provides all the controls, audible and visual alarm signalling for the system. An audio amplifier
provides all the audible tones through a built-in speaker and the exterior audio ports (S1. S2) A silence
button on the EC-300 silences all incoming calls. A DIP switch can program the silence function to be
latching or recall after a fixed period of time (2.5, 5 or 10 minutes). External ports are provided for r
emote monitoring, audible signals and common alarm annunciators. Typically only one EC-300 Call Receiver
module is required per system. The EC-300 is designed to withstand transient or electrical noise.
|
|
|

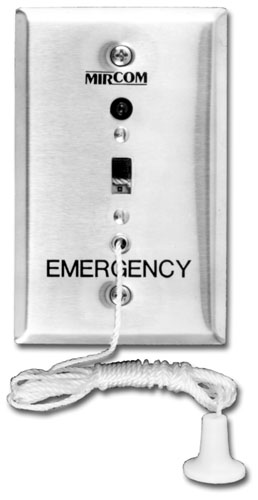

Mircom EC-100 Single Gang Pull Cord Station |
|
|
Mircom Pull Cord Stations are made from durable brushed stainless steel single gang plates. Each pull
cord is 1.8 m (6 feet) in length with a white pendant at the end. All stations use UL approved 125 VAC, 3A slide switches.
The standard single gang electrical boxes are not supplied with the units
|
|

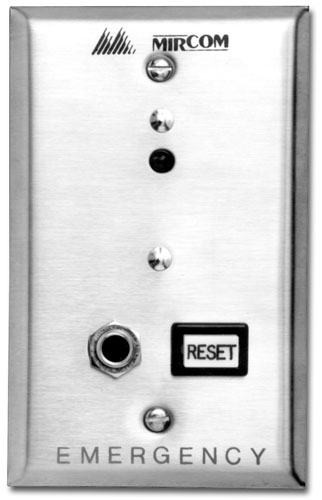

Mircom EC-115 Push Cord Station w/Confirmation LED |
|
|
Designed to utilize various cord sets for initiating a call, the EC-115 station can accommodate a 1/4” diameter
cord set. A local reset button is provided on each station and a red confirmation LED. Removal of any cord
set shall also trigger a call.
|
|
|

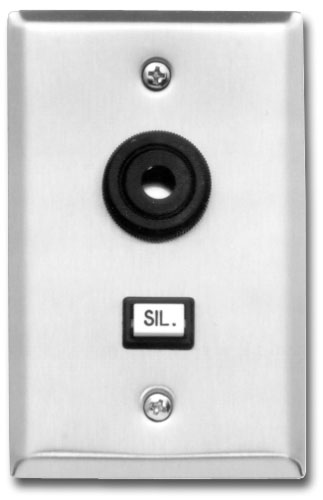

Mircom AS-084(A) Remote Signal Silence Station |
|
|
To annunciate common alarms a duty station can be used. Made stainless steel single gang electrical plates,
the AS-084A is durable to abrasive cleaning agents. A remote silence button on the station shall silence all
audible signals. A local piezo alert on the station announces any incoming calls.
|
|

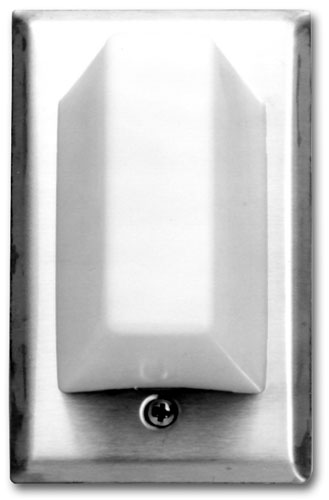

Mircom EC-104/6 Corridor Dome Light |
The Corridor Lamps (EC-104, EC-106) mount to a standard single gang electrical box. Each lamp is made from
a brushed stainless steel plate.
The EC-104 is a single lamp while the EC-106 is a dual lamp. A partition inside the translucent white lens
separates the two lamps from top and bottom. Special coloured bulb covers can provide additional visual
distinction. (eg. red, yellow, blue, etc.)
|
|
|
Serving the Greater Toronto Area for over 20 years!
Call us for pricing or installation
(905) 421-0090 |
